WTEM-3Q Model Transient Electromagnetic System with 12V Rechargeable Battery for Deep Mineral Exploration

Application : geological

MOQ : 1

Keyword : electromagnetic measuring instruments

Feature : High Accuracy Low Cost

Usage : geological problems

Brand : Gold

Type : Magnetic

Operating temperature : -10°C~50°C

Key words : Transient Electromagnetic Instrument

Model : WTEM-3Q

Brand Name : GOLD

Model Number : WTEM-3Q

Certification : CE, ISO

Place of Origin : chongqing,China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 work days

Packaging Details : wooden case

Contact Now

Integrated Survey Kit For Deep Mineral Exploration: Transient Electromagnetic System
WTEM-3Q Model Transient Electromagnetic System with 12V Rechargeable Battery for Deep Mineral Exploration
Product Description
In the mining industry, the WTEM Transient Electromagnetic Method System plays a pivotal role in ore exploration, especially for deep-seated metal deposits. Its high penetration capability and precise signal acquisition allow geologists to identify potential mineralization zones accurately, reducing exploration risks and optimizing resource discovery in challenging deep mining scenarios.

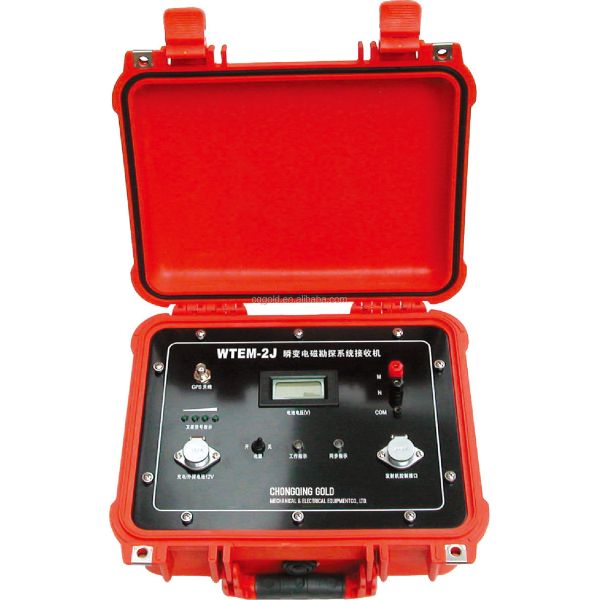

WTEM-2J/GPS TEM Exploration System Receiver
WTEM-3Q Model Transient Electromagnetic System with 12V Rechargeable Battery for Deep Mineral Exploration
Specification Details
Channel number 1
Pre-amplifier gain 8, 32 times
Main amplifier gain 1, 2, 4, 8, 16, 32, 64, 128 times
Band pass 0~50kHz(liner phased filter), full band 0~400kHz
A/D bit 16bit
The minimum sample interval 1 μs
Crystal oscillation total error ≤5*10-9
Trace number 50
Stack number 1~9999
Synchronization mode (1) Cable synchronization (2)GPS synchronization
Power supply Built-in 12V rechargeable battery(support outside power), working time≥10 hours
Working temperature -10℃~+50℃
WTEM-1D 10KW Large Power Transmitter
WTEM-3Q Model Transient Electromagnetic System with 12V Rechargeable Battery for Deep Mineral Exploration
Specification Details
Transmitting voltage 200V
Transmitting current 50A
Current measurement precision 1%
Power supply frequencies 0.0625Hz, 0.125Hz, 0.25Hz, 0.5Hz, 1Hz, 2Hz, 4Hz, 8Hz, 16Hz, 32Hz
Transmitting power voltage display Liquid crystal display unit V, display resolution 0.1V
Working temperature -10℃~+50℃
Additional Specifications
Feature Details
Operating temperature -10℃～+50℃
Charger for built-in battery 12V, charging current ≤1.5A, charging time ≤6 hours (automatic detection)
Charger for transmitting battery 12V, charging current ≤20A, charging time ≤10 hours
Processing software Windows version of one-dimensional forward and inversion software, Surfer software, data transmission and format conversion software, etc., to help you quickly play back, process and map data.
Main Applications
  • Configuration is adaptable for different geological problems, such as quick survey, stereo mapping, deep mine finding and shallow detection.
  • It is mainly used for metal mineral, coal, oil and gas field, geothermal field, and hydrogeological & engineering geological survey.
