Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey

Brand Name : Gold

Model Number : WZG-24C

Certification : ISO9001 CCC CE

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,,MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Engineering Seismograph

Application : borehole seismic receiver

Channels : 6/12/24/48/96

OEM/ODM : Acceptable

Depth : 50m to 100m

Frequency : 38hz

Diameter : 50/40mm

Arm : Arm open geophone

Contact Now

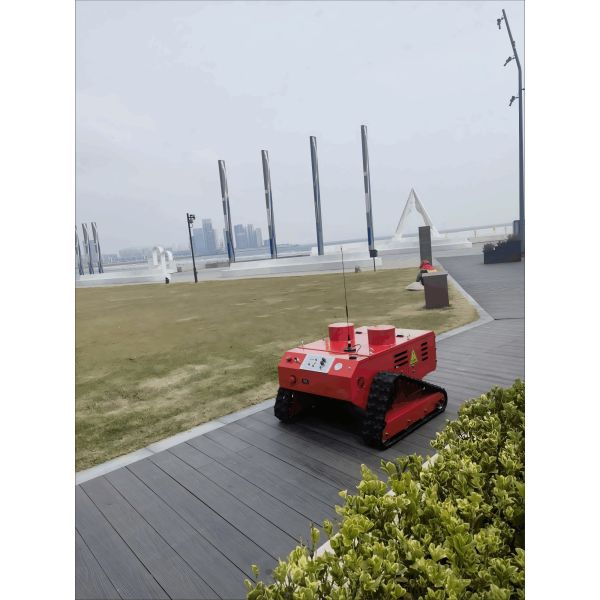

Advanced Electromagnetic Seismic Source System
Our flagship innovation in subsurface imaging technology designed to set new standards for performance, versatility, and user experience in geophysical exploration.
Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey
High-Performance Electromagnetic Drive
Engineered for optimal energy conversion with minimal losses, featuring advanced heat dissipation technology that enables continuous high-output operation across a broad 5-1000 Hz frequency spectrum.
Unified Multi-Wave Generation
Proprietary design produces both longitudinal (P) and transverse (S) seismic waves within a single actuator assembly, facilitating richer subsurface characterization with mechanical simplicity and operational robustness.
Advanced Mobility & Environmental Design
Equipped with durable tracked propulsion system providing superior cross-country performance and 30° gradeability. Powered by clean, quiet rechargeable battery pack with zero emissions.
Operational Intelligence & Automation
Features advanced telemetry for long-range remote control and data communication. Capable of executing pre-programmed survey missions and integrating with autonomous seismic recording systems.
Economic Efficiency
Lithium iron phosphate battery system provides capacity for a full day of intensive surveying with several thousand source activations. Minimal daily operational expenses and easy servicing architecture.
Remote Asset Management
Monitor unit status, track location, and manage utilization through software portal for optimized deployment and preventive maintenance scheduling.
Applications
  • Site response studies for earthquake engineering
  • Geophysical surveys for civil engineering projects
  • Near-surface geology investigation for environmental assessments
  • Resource assessment and exploration
  • Transportation infrastructure condition evaluation
  • Subsurface utility engineering and void detection
Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey
Technical Specifications
Parameter Specification
Drive Type Electromagnetic
Vibrator Type Integrated P-Wave & S-Wave (Combined)
Control Method Remote Control / Autonomous Operation
Peak Force Output 2700 N
Frequency Sweep Range 5 Hz - 1000 Hz
Maximum Gradeability 30°
Dimensions (L x W x H) 1160 mm x 1000 mm x 700 mm
Weight 350 kg
Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey Electromagnetic Seismic Source Robot with 50m to 100m Depth 38Hz Frequency and 50/40mm Diameter for Survey
